Overview

The Compare block compares two inputs.
If Input 0 is greater than Input 1, then the block will output a value of 1 (TRUE).
If Input 0 is less than or equal to Input 1, then the block will output a value of 0 (FALSE).

The configuration values for this block are as follows:

Subsample Code	A code which determines the schedule for updating this block (every sample, even samples only, etc.) See Subsampling.
User Data 0	Application-specific data. See User Data Storage.
User Data 1	Application-specific data. See User Data Storage.

Matlab/Simulink

Simulink Interface

bin_img1

The inputs are double precision values that are compared to form the output. If Input 0 is greater than Input 1 then the block will output a value of 1 (TRUE). If Input 0 is less than or equal to Input 1, then the block will output a value of 0 (FALSE).

The block has two user data fields (User Data 0, User Data 1) to store application-specific data for convenient storage and retrieval. See User Data Storage for details.

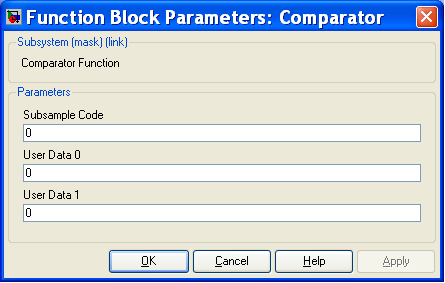

The block's update schedule is determined by the Subsample Code (See Subsampling). The following Parameter Dialog Box can be opened by double-clicking on the block in a Simulink Model:

bin_img2

C++ API

COMPBlock

Declaration

Public Method

	COMPBlock& COMP();
	Required Header: mechaware.h

Description

The Compare block compares the value of two inputs. This block has no configurable parameters.

Methods

Block Methods
